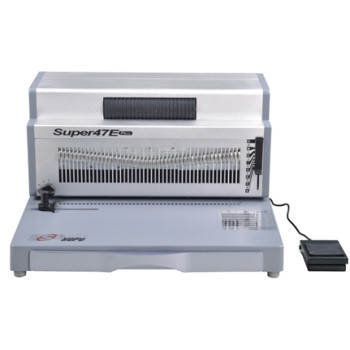

F4 size coil binding machine (330mm)
- group name
- more
- Min Order
- 1 piece
- brand name
- SUPU
- model
- SUPER47E PLUS
- Nearest port for product export
- NINGBO, SHANGHAI
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- Export mode
- Have the independent export and import right
- update time
- Mon, 25 Nov 2024 02:31:49 GMT
Paramtents
Model suoer47e plus
Brand Name SUPU
Place of origin Hangzhou,china
Width 300mm
Punching thickness 25 sheets
Pitch 6.287mm
Disengagement punch pins 47
Number of punch pins 47
Binding thickness 180 sheets
payment T/T
Packging & Delivery
-
Min Order1 piece
Briefing
strong punch capacity
CE,CB,ETL,SAA certificates
Detailed
F4 size coil binding machine (330mm)
Technology Data
Model:SUPER47E PLUS
Width:300mm
Punching thicknss:25 sheets
Pitch:6.287mm
Disengagement punch pins:47
Number of punch pins:47
Binding thickness:180 sheets
Motor:230V,50HZ/120W 110V,60HZ/120W
Description
Please check the waste tray is empty or not and correctly fitted.
Plug the foot pedal to the socket.
Fit the supplied power lead to the power socket that at the rear of the machine.
Plug the foot pedal to the socket.
Select the correct coil diameter to suit the document,according to the document measure card on the baseplate.
Test punch scrap sheets to check edge guide setting
Punch front and back covers first with stepping the foot pedal ,please make sure that the punch button is turn on
Hold the punched document in both hands,making the coil is on the right side,treat the foot pedal when binding
